1.375-24 Bravo (HUB) Direct Thread Mounts

$66.00$76.00

Clear

Description

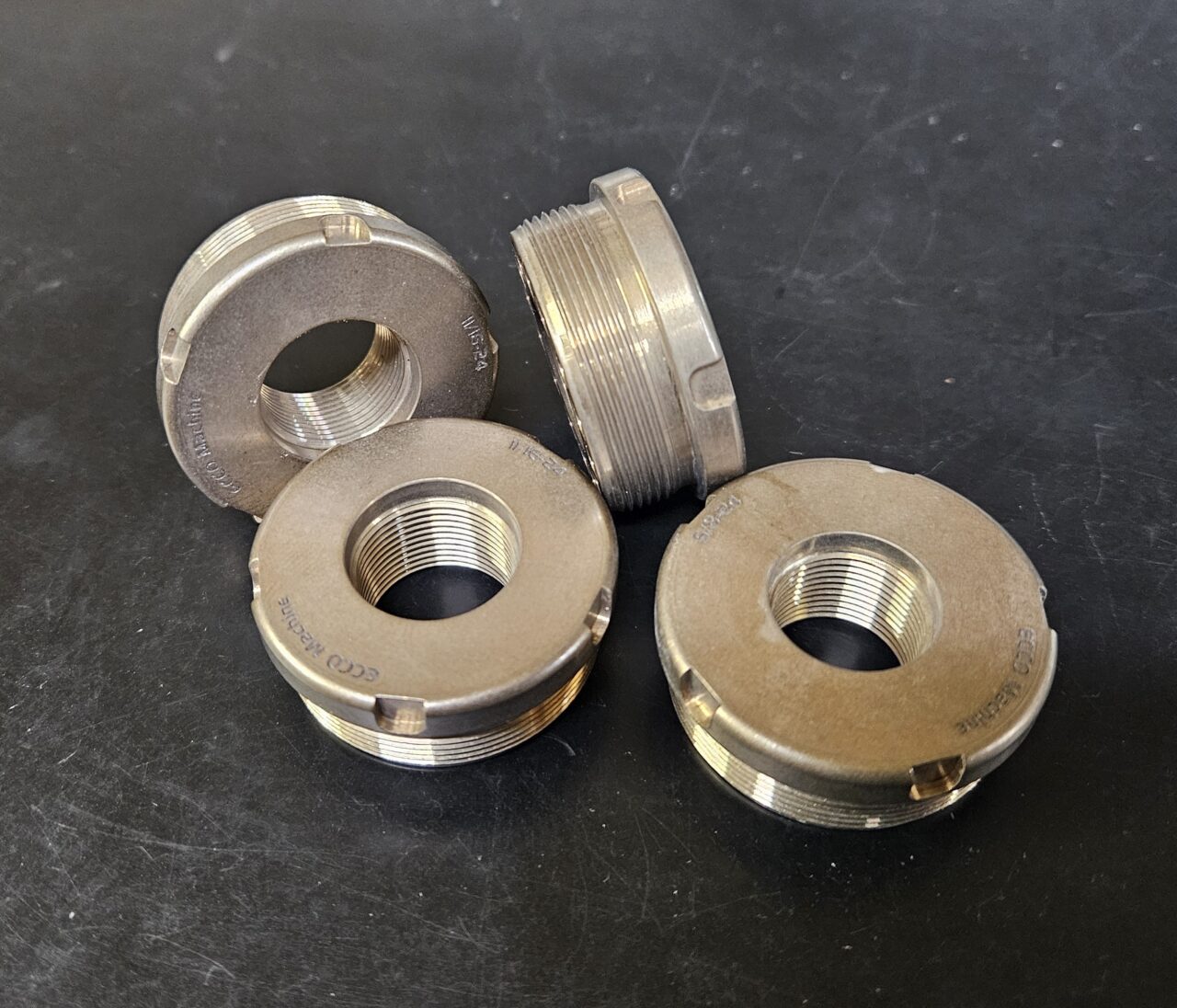

1.375-24 Bravo pattern direct thread mounts, 17-4 H900 stainless steel. Except for the lightening holes drilled from the front, these are machined in a single set up from solid bar stock to ensure all critical features are concentric and aligned. These are properly counterbored for installation on barrels that lack a rear undercut.  1/2-28 and 5/8-24 mounts have a deeper counterbore for AR tenons.

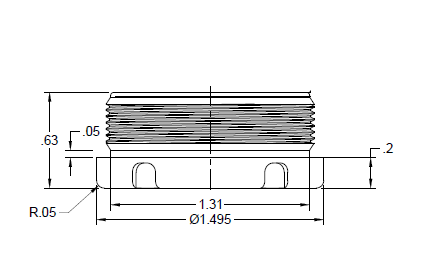

Flange diameter: 1.5″
Flange thickness: .2″
Thread Tenon Length: .45″
Weight: 2.4-2.8 oz

These mounts install/remove with 1.5″ or adjustable spanner wrenches.  We recommend the OTC 4791 adjustable spanner wrench, which will work with many mounts & adapters of varying diameters as well as some suppressor bodies.


Unless otherwise specified, 1.375-24 Bravo direct thread mounts are THROUGH THREADED; they DO NOT have an internal shoulder to register on muzzles.   If you need an internal shoulder in a direct thread mount, please contact us about custom parts.   M14x1 LH Bravo mount has a rebated register face so that the flange does not contact the front sight tower.

In stock Natural finish or Black adapters ship 1-2 business days. Other color options add up to 10 business days.



Not sure what Bravo pattern means? Learn more about it here (Scroll to bottom): https://www.eccomachine.net/our-faqs/

Additional information

Muzzle Threads

.670-28 Muzzle Registering, 1/2-28 Sig Taper, 1/2-32, 3/4-20, 5/8-24 Sig Taper, 7/16-28, 1/2-20, 1/2-24 (Ruger), 1/2-28, 1/2-36, 9/16-24, 9/16-24 LH, 9/16-28, .578-28, 5/8-18 (Ruger), 5/8-20, 5/8-24, 5/8-32, 11/16-24, 3/4-24, 3/4-28, 13/16-16, 7/8-20, 7/8-24, M13x.75 Browning, M13x1RH, M13.5x1LH, M13x1.25, M13x1.25 (Browning), M14x1RH, M14x1LH, M15x1RH, M16x1RH, M16x1LH, M18x1RH, M18x1.5 Taper
