Cherry Bomb Pattern Adapters

$71.00$95.00

Clear

Description

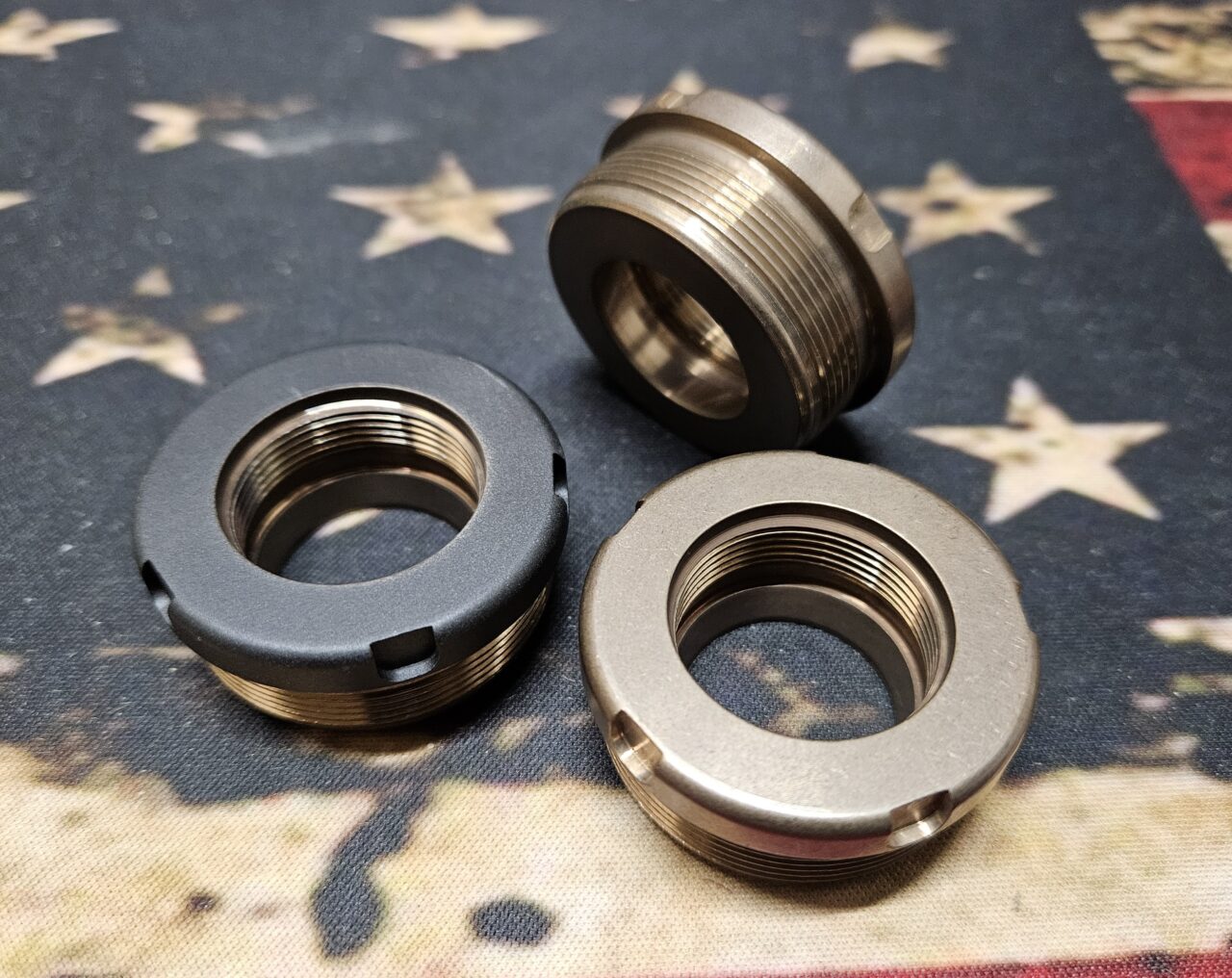

These 17-4 H900 stainless steel adapters will allow you to use Rearden/Cherry Bomb pattern muzzle devices, including products from Rearden Manufacturing and Liberty Precision Machine, with your suppressor threaded in patterns detailed below

We do not have specifications for distance from rear face to blast baffle for all the cans in which these adapters may be used.   Some might require an extension adapter when available, or the use of shorter muzzle devices from Rearden Mfg. or Liberty Precision Machine.

We use and recommend the OTC 4791 3/4-2″ adjustable spanner wrench for all of our mounts & adapters equipped with spanner notches.

***We have found that a not insignificant number of Q muzzle devices and some other aftermarket muzzle devices have oversize or poorly formed male threads.   Therefore, we strongly recommend the use of anti-seize for at least the initial fitment check with any muzzle device***

ALPHA, GEMTECH/LIBERTY/B-Tube and DEAD AIR PATTERN:
Material: 17-4 H900 stainless steel
Length: .65″
Flange thickness: .25″
Flange diameter: 1.37″
Weight: 1.7 ounces
Internal thread: Cherry Bomb Pattern

External thread: 1.125-28, 1.180-24 or 1.203-28



BRAVO (1.375-24 H.U.B.) PATTERN:
Material: 17-4 H900 stainless steel
Length: .65″
Flange thickness: .2″
Flange diameter: 1.5″
Weight: 2.6 ounces
Internal thread: Cherry Bomb Pattern
External thread: 1.375-24
TITANIUM BRAVO (1.375-24 H.U.B.) PATTERN:
Material: 17-4 H900 stainless steel
Length: .65″
Flange thickness: .2″
Flange diameter: 1.5″
Weight: 1.5 ounces
Internal thread: Cherry Bomb Pattern
External thread: 1.375-24
1.4375-24 PATTERN:
Material: 17-4 H900 stainless steel
Length: .65″
Flange thickness: .2″
Flange diameter: 1.5″
Weight: 2.8 ounces
Internal thread: Cherry Bomb Pattern
External thread: 1.4375-24



Gemtech ONE

Material: 17-4 H900 stainless steel
Length: .65″
Flange thickness: .325″
Flange diameter: 1.5″
Weight: 3.0 ounces
Internal thread: Cherry Bomb Pattern

External thread: 1.422-24 or 1.422-28*



*Earlier ONE suppressors had 28 TPI threads of the same diameter as the later 24 TPI cans. You will need to determine which threads your suppressor has before ordering. We do not know of any way to identify these besides gauging/measuring the thread pitch of the tube or an existing adapter, and attempting to install one with the incorrect threads may result in damage to the adapter and/or the suppressor. Our Return, Refund & Exchange policy applies to this adapter if you order with the incorrect threads for your application: https://www.eccomachine.net/refund_returns/

Unless otherwise specified, adapters ship in natural finish. Select a color from the drop down menu to indicate a color selection. Please be advised, color applications will delay shipment by approximately 5-10 business days.

Additional information

Thread Pattern

1.180-24 Gemtech/Liberty/B-Tube, 1.125-28 Alpha, 1.203-28 Dead Air, 1.375-24 Bravo (H.U.B.), Titanium 1.375-24 Bravo (H.U.B.), 1.4375-24, Gemtech ONE, Early Model 28 TPI, Gemtech ONE 24 TPI, Banish 30

Moly Resin

Foliage Green, Light Grey Flat, Natural, Burnt Bronze, Coyote Brown, Tan FDE, SOCOM Black, Grey-Black Colt Flat, OD Green, Flat Brown

6 responses to “Cherry Bomb Pattern Adapters”

    Geoffrey Stevenson
    October 22, 2024
    Absolutely fantastic! Machining and finish are perfect, shipped incredibly fast. I highly recommend ECCO Machine! Thanks very much!
    Jason Gaudreau
    March 28, 2024
    Just damn perfect! I’ve got a FCD/RD 6315rf that has an ocl polonium….just needed an adapter! There’s a few on the market but they all have a hex flange extension for wrench flats…..this omits that extra flange! I’d suggest purchasing a spanner wrench (otc 4791 $28/amazon) but, because of that flange on most adapters (including the direct thread adapter that came with the ocl can) this adapter actually landed at the exact same overall measurement in length as direct thread….but now I CAN go from my 12.5” to my 16” without much hassle. Also, fits perfectly on the FCD/RD 3P15 3 prong flash hider on my 16” as well. Ecco for the win! Best shipping and customer service in any business in America right now. Just all around good people with stellar products and services!
    Chaz Turbino
    October 2, 2023
    I recently purchased a Gemtech Shield (2021 production under the S&W brand) originally intended to use with a bi-lug GSL P90 flash hider adapter. Like many others, using the GSL P90 adapter resulted in the alignment rod either nearly touching the end cap of a GSL/Gemtech can, or contacting one or more baffles. Out of curiosity I took the rear Bi-Lug cap off and took measurements, and asked Nick for more info on his Gemtech One adapters. Turns out the 1.422-28 is the same thread pitch used on the Gemtech Shield. With the Ecco Plan B/Cherry Bomb adapter, the alignment rod is dead-center with the Gemtech Shield on the PS90 as well as my other 5.56 platforms. There is about a 1 oz weight penalty versus the stock bi-lug setup, but at least it brings the mounting tech back into the 2020 era and is not from the late 1990s. The easiest way I found to check 24 vs 28 TPI is to use a Bravo adapter (1.375-24) to match the threads of your Gemtech cap as well as a 1/2-28 threaded barrel muzzle or device to check. For my Gemtech Shield bi-lug cap, it matched a 1/2-28 threaded muzzle perfectly and the OD of the threads was 1.416" This Ecco adapter is highly recommended if you own a Gemtech One or Shield and want to ditch the Bi-Lug. Other Gemtech cans might use the same thread pitch, maybe even GSL but one would have to check their respective suppressors to verify.
    Jb
    July 21, 2023
    It’s perfect. I can’t say anything bad about it. The dead air cherry bomb adapter works for my dead air wolfman paired with a rearden muzzle brake. I’m able to run 556 on my wolfman now. Fit and finish was great. And they gave me hummus bearsn will definitely order from ECCO again.
    Austin Weber
    June 20, 2023
    Purchased two Cherry Bomb Pattern Adapters. Website is clear and concise, order shipped out the next morning and was at my door within a few days. Mount is extremely well made, machining is solid and smooth. Coming from the popular Q mount, this offered a cleaner more flush fit for my suppressors. Low profile closes the gap between rail and suppressor as well. Lockup on muzzle device feels better than any other mount.
    David Hamby
    January 3, 2023
    Awesome customer service. Nick helped me solve my quick connect issues fast. Excellent products!!!
